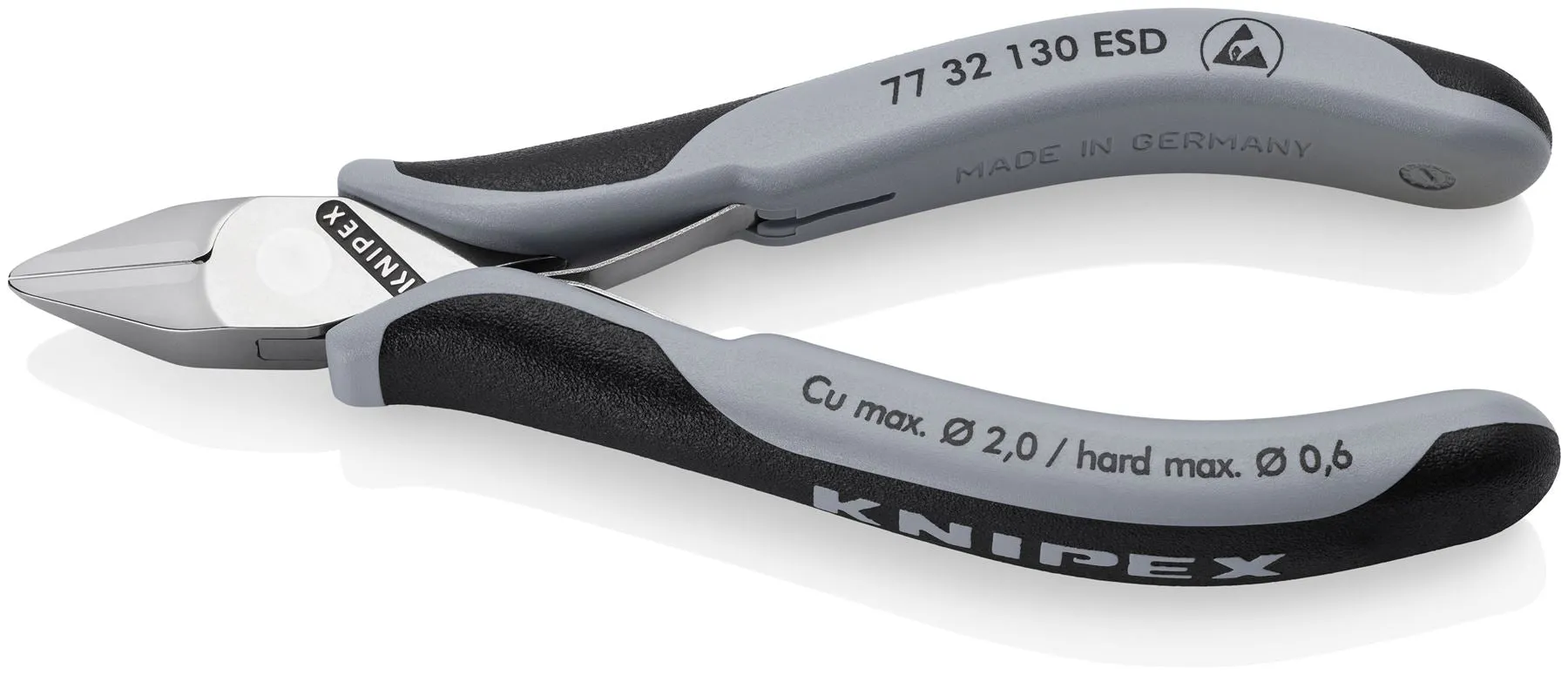

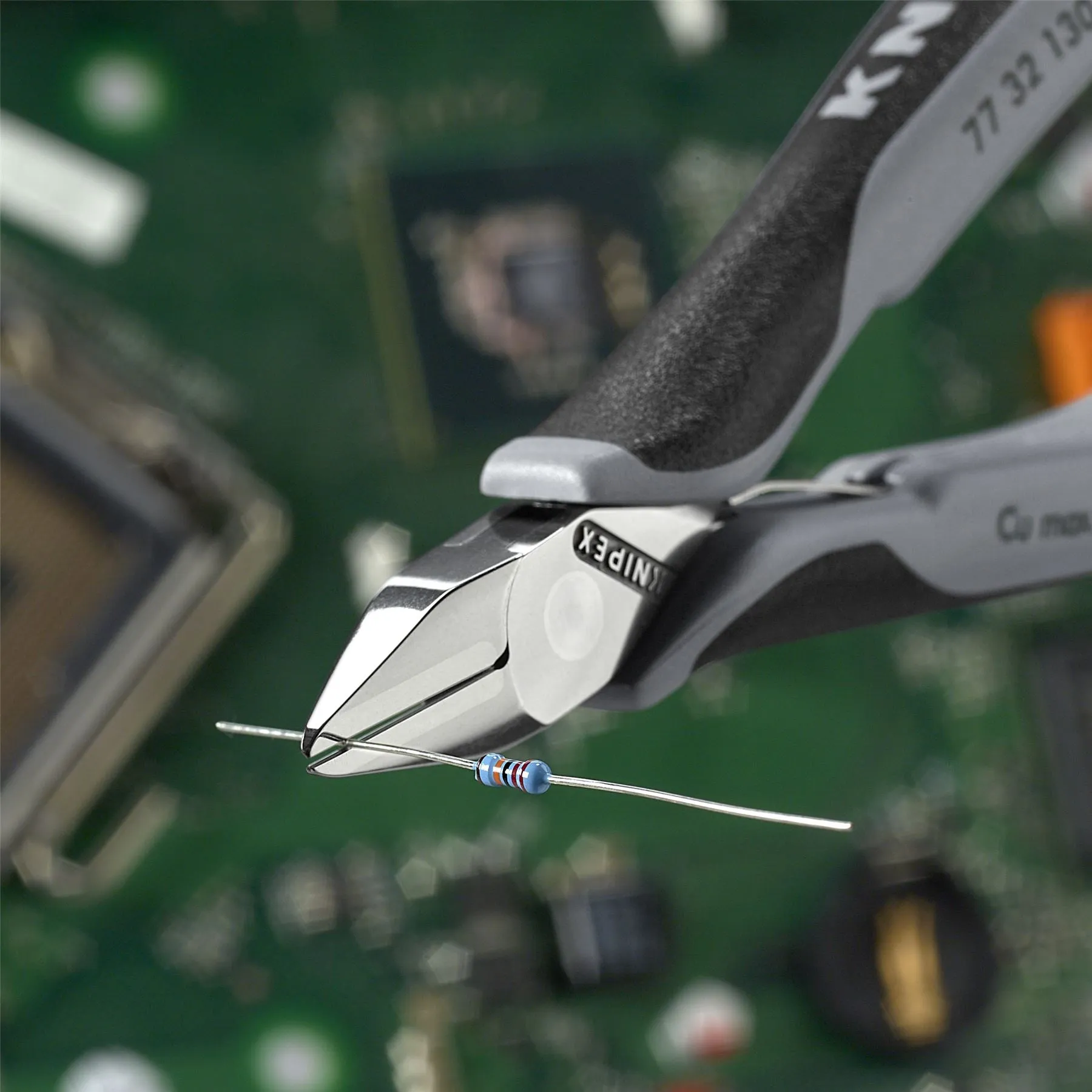

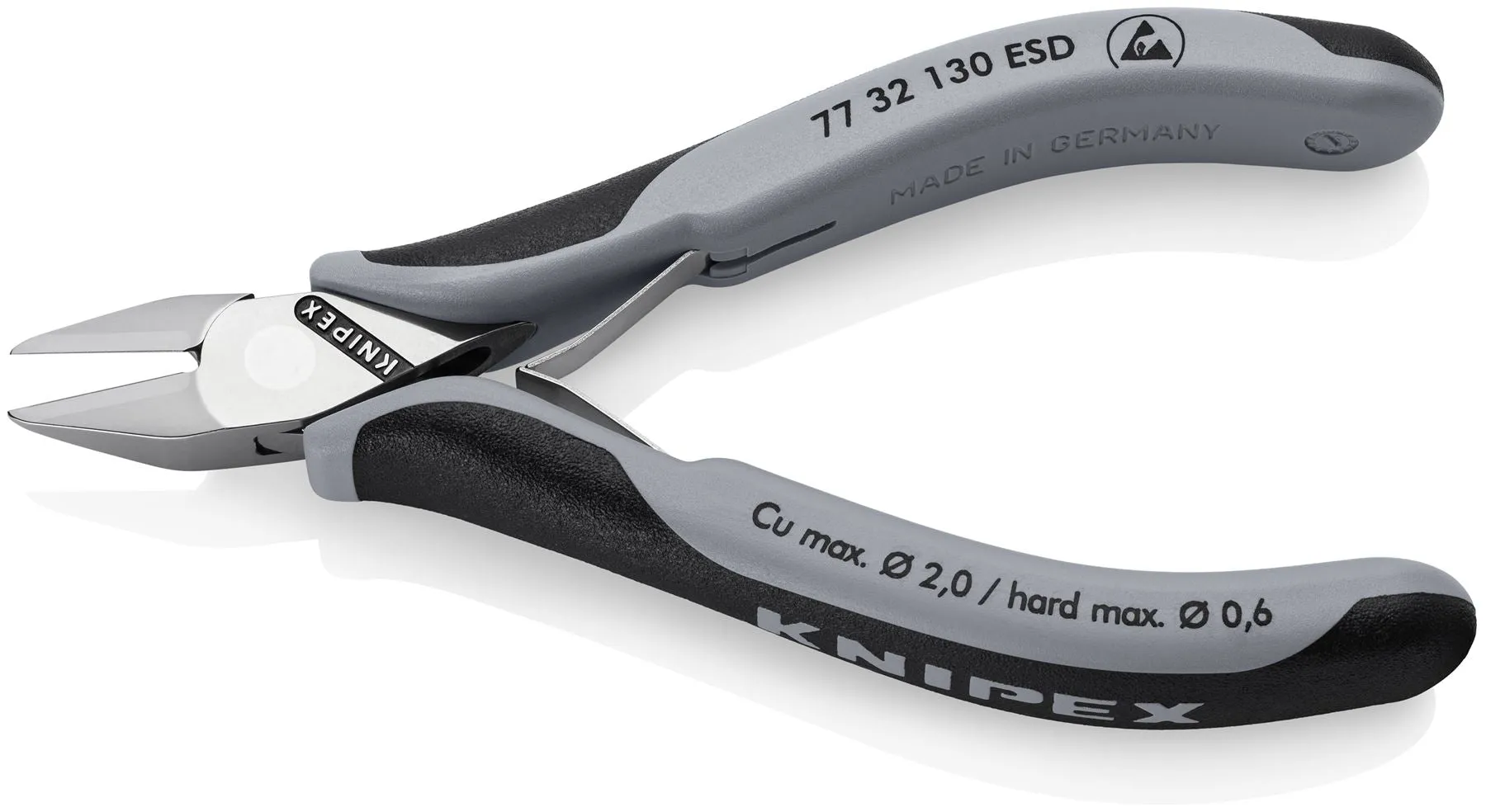

Name: KNIPEX Electronics Diagonal Cutter Pliers Pointed Head Small Bevel 115mm Multi Component Grips 77 32 130 ESD
SKU: 621657

KNIPEX Electronics Diagonal Cutter Pliers Pointed Head Small Bevel 115mm Multi Component Grips 77 32 130 ESD

$ 48.50

$ 0.00

Save: $

Title:

DefaultTitle

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

KNIPEX Electronics Diagonal Cutter Pliers Pointed Head Small Bevel 115mm Multi Component Grips 77 32 130 ESD

77 32 130 ESD Electronics Diagonal Cutters ESD
Durable, load-optimised design with backlash-free box joint. High, slim sleeves for fine and comfortable gripping between thumb and index finger. Less physical effort due to very high transmission ratio. Load-optimised for a more direct feel when working. Low-friction double spring for gentle and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 62 HRC. pointed head, with small bevel.

Cutting capacities medium hard wire (diameter): Ø 1.3 mm

Schneidwerte harter Draht (Durchmesser): Ø 0.6 mm

Cutting capacities soft wire (diameter): Ø 0.3 – 2 mm

Jaw length (B): 16.2 mm

Jaw thickness (joint) (D): 8.5 mm

Head width (A): 13 mm

Cutting edge length mm (C): 16.2 mm

ESD: yes

Technical Information:

Cutters additionally laser hardened, cutter hardness at least 62 HRC
Load-optimised for a more direct feel when working
low-friction double spring for gentle and even opening
pointed head, with small bevel
The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
