IN STOCK. Next Day Delivery & Collection Available

Key Features:

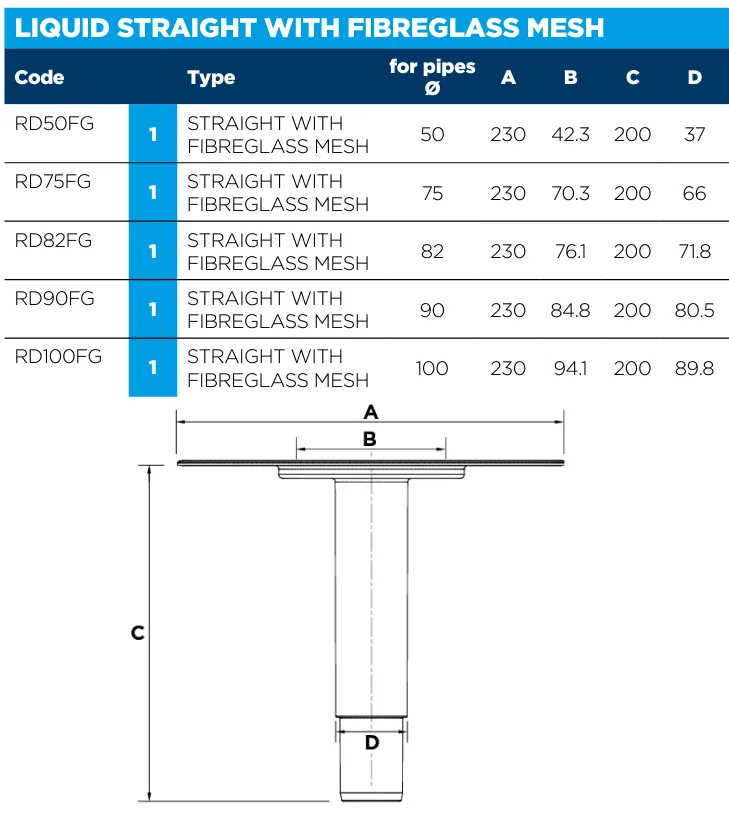

• Sizes to suit pipe Ø diameter: 50mm / 75mm / 82mm / 90mm / 110mm
• Use: Vertical Drain Outlet for Fibreglass &  Polyurethane roofing systems

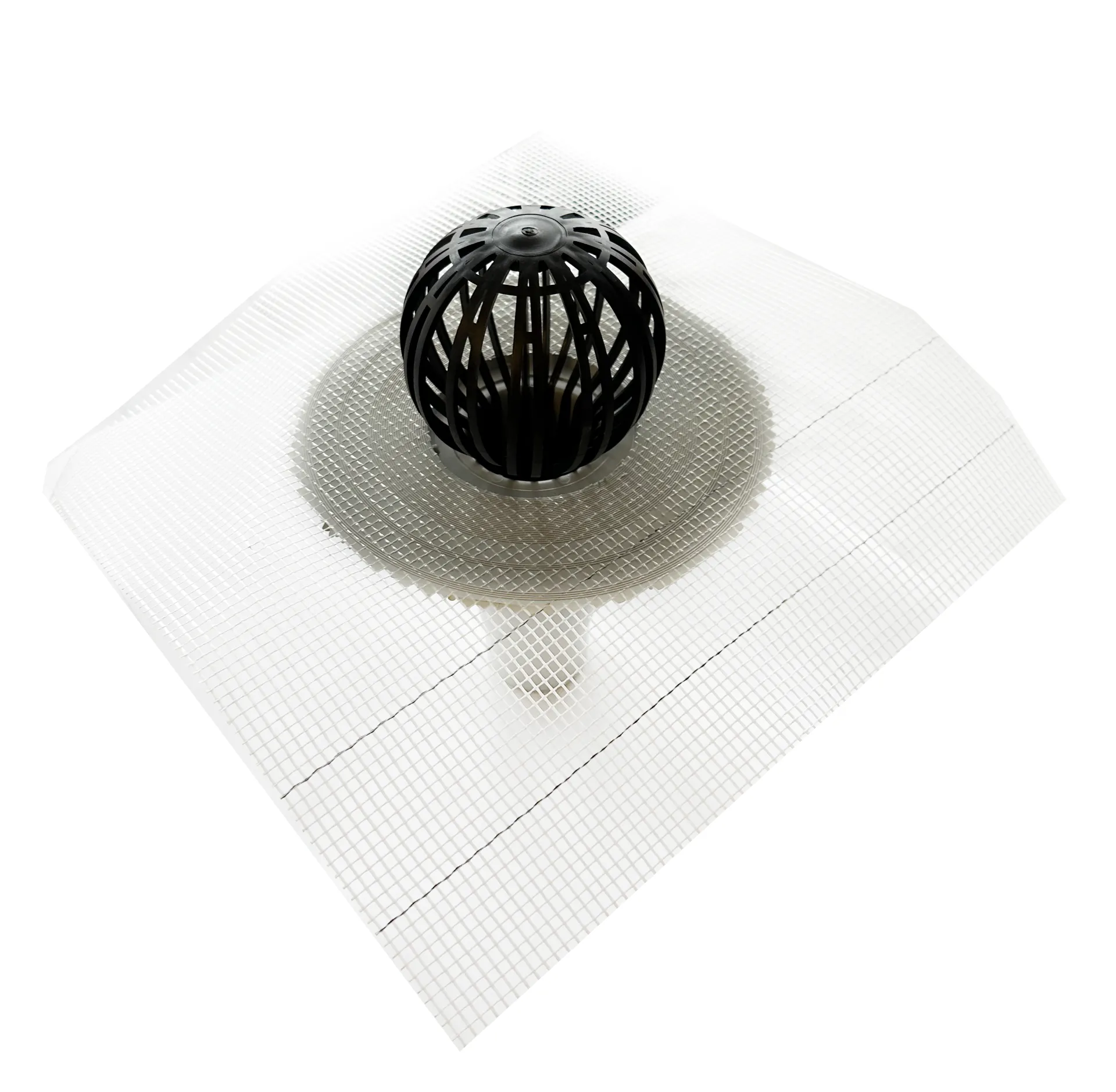

• Leaf guard:
• Warranty: 25 Year Product Guarantee

Description:

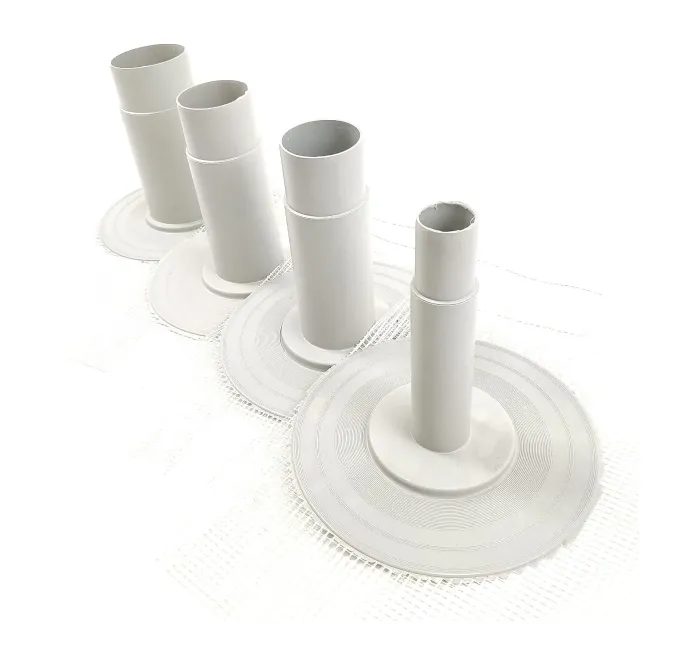

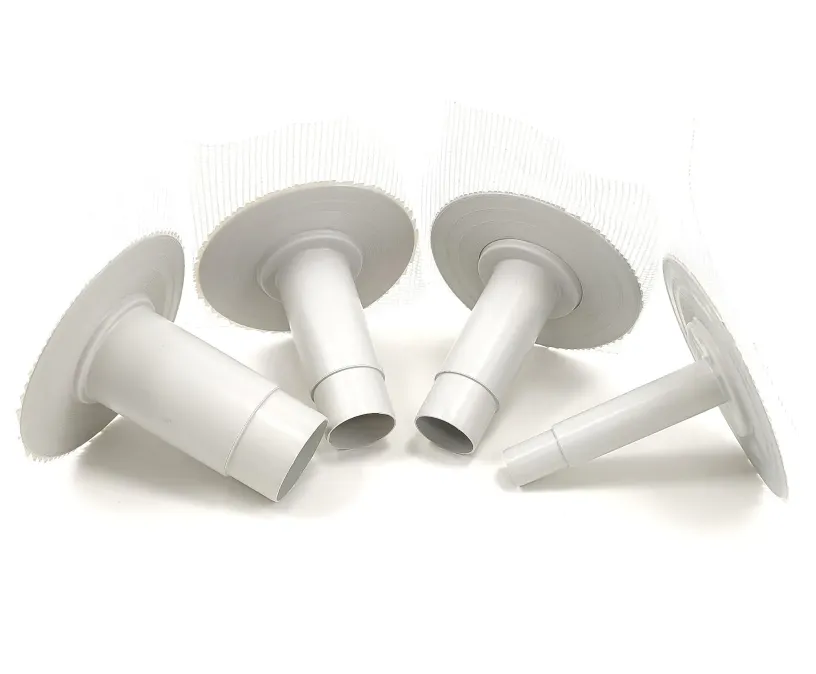

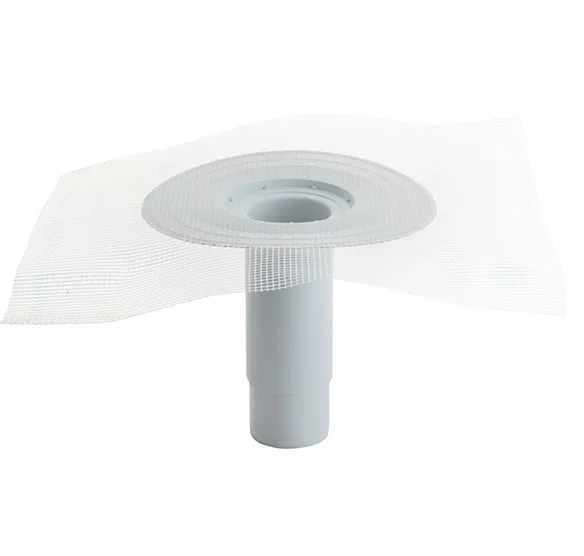

Vertical Rainwater GRP drain outlets are used to join a rainwater downpipe to the Fibreglass roof where the drain runs vertically through the roof deck. options to suit the following pipe diametwers:

• 50mm - To suit 50mm Pipe diameter
• 75mm - To suit 75mm Pipe diameter
• 82mm - To suit 82mm Pipe diameter
• 90mm - to suit 90mm Pipe diameter
• 100mm - To suit 100mm Pipe diameter

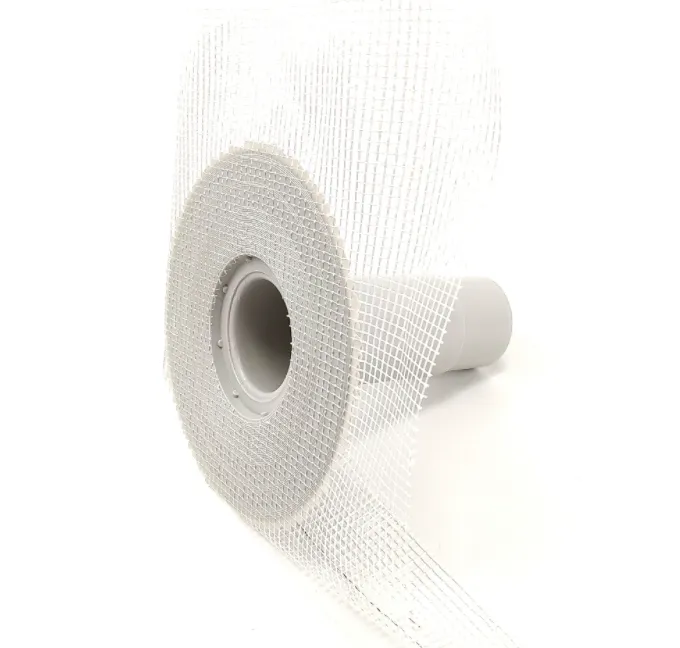

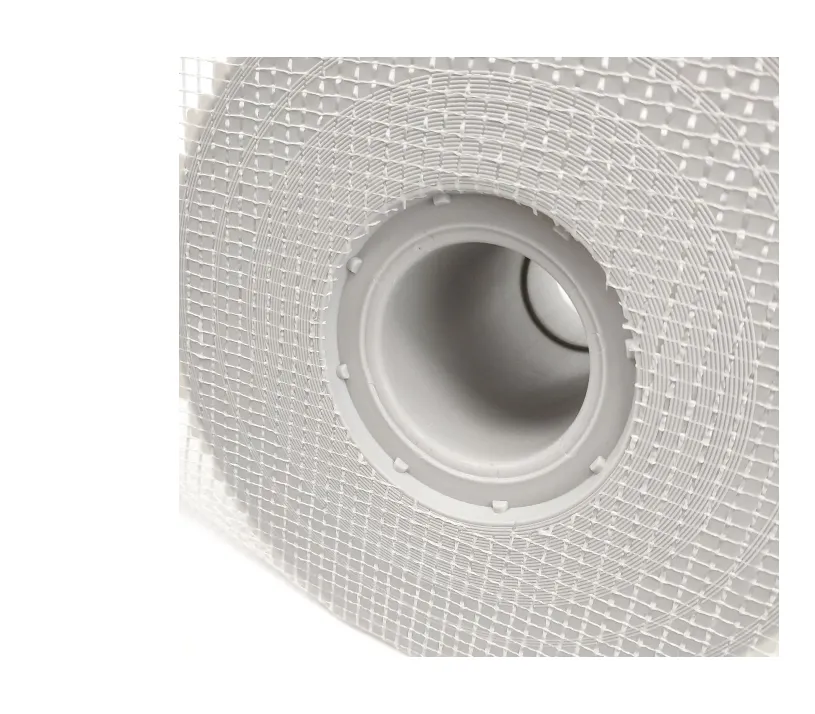

These drains have been bonded to a fibrerglass mesh flange for prefect adhesion to GRP, and Polyurethane roofing systems. The liquid vertical exit drain includes a fibreglass mesh for bonding, particularly with water based liquid waterproofing materials. The polypropylene flange is designed with a knurled surface on both sides to improve adhesion of liquid waterproofing materials. Small steps on the upper part of the spigot allows upper infiltration water to be captured and drip away.

• Wide choice of diameters 50mm, 75mm, 82mm, 90mm, 100mm.
• Fibreglass mesh for bonding, works well with water based liquid waterproofing materials.
• Polypropylene flange with two sided knurled surface for strong adhesion of liquid waterproofing materials.
• Small steps on upper spigot allows upper infiltration water capture and drip away.
